Whitehat 18dBi Directional Dish Antenna (Field & Lab Edition)

This configuration pairs a high-gain 18 dBi directional parabolic dish antenna with a stable, tripod-mounted platform for long-range, point-to-point, and experimental RF links. It is designed for situations where directionality, signal discipline, and careful operator alignment matter.

The dish used in this setup is a Pasternack PE51PD1004 , a single-polarization 18 dBi parabolic antenna with an N-type interface. This class of antenna is well suited for directional Wi-Fi, Bluetooth, mesh backhaul links, and other narrow-beam RF applications where link budget and interference rejection are critical.

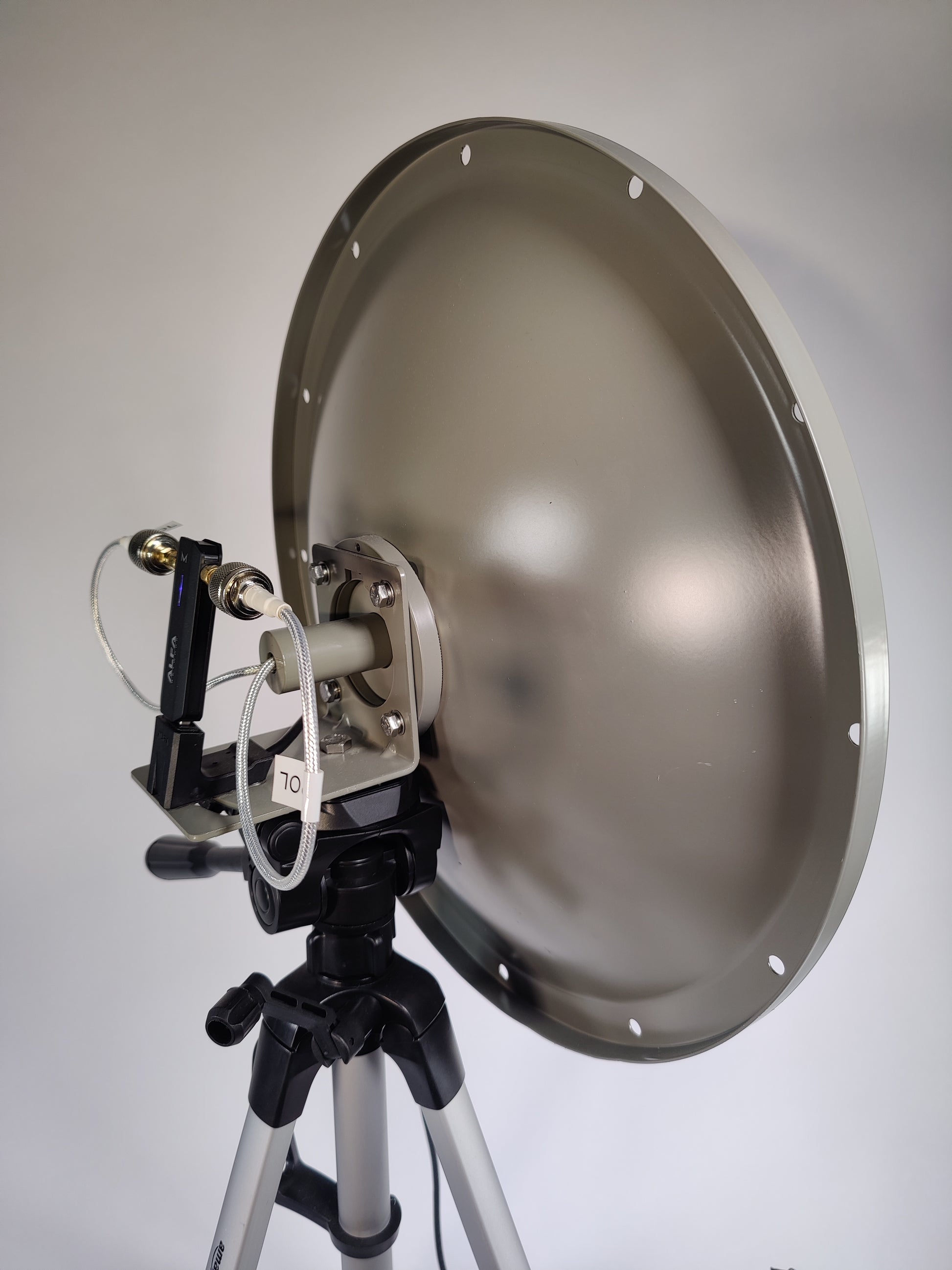

The dish is mounted on a custom tripod-based stand for stability and precise aiming, making it easy to deploy indoors, in the field, or on temporary test ranges. The feed is positioned close to the antenna to preserve signal integrity, and the overall assembly is designed to be mechanically stable and visually easy to align.

Included radio interface

This configuration includes the ALFA AWUS036AXM WiFi 6E USB 3.0 adapter , a high-quality external radio supporting modern WiFi and Bluetooth connectivity.

The AWUS036AXM is well suited for directional link experimentation, alignment, diagnostics, and lab or field testing where reliable USB-based radio performance and flexible host integration are required.

Demonstrated configuration

Images show the dish and included ALFA adapter connected to a keyboard-forward handheld computer (such as a Hackberry Pi CM5) to illustrate a complete, human-in-the-loop directional link setup. The handheld computer is shown for demonstration purposes only and is not included with this product.

Why a directional dish?

• Focused beam for improved link budget and reduced interference
• More reliable performance in dense or noisy RF environments
• Well suited for point-to-point, relay, or backbone mesh links
• Clear mechanical and visual alignment during setup

This is not a consumer Wi-Fi dish repurposed for aesthetics. It is a serious RF component, presented in a way that makes experimentation repeatable, understandable, and intentional.

Whitehat Hardware curates this configuration to highlight what disciplined RF design looks like in practice: directional gain, stable mounting, and systems that invite careful adjustment and learning.

Intended use

This product is offered as test and experimental equipment intended for laboratory, development, and field experimentation. It is not a consumer networking appliance.

Regulatory notice: The user is responsible for ensuring that all equipment is operated in compliance with applicable local laws, regulations, and FCC requirements, including frequency use, transmit power limits, and licensing where required.
